Reference: Treatment of Acid Red 73 wastewater by the O3/RSR-BCR process

O3/RSR-BCR工艺处理酸性红73废水

1. 文章信息

标题：Treatment of Acid Red 73 wastewater by the O3/RSR-BCR process

中文标题：O3/RSR-BCR工艺处理酸性红73废水

2. 文章链接

https://doi.org/10.1016/j.cep.2020.108296

3. 期刊信息

期刊名：Chemical Engineering and Processing - Process Intensification  Volume 160 , March 2021, 108296

涉及研究方向：化学工程

4. 作者信息：Jinmeng Fan a, Fei Fan b, Wei Wang b, Hanxiao Zhang a, Lei Wang a, Jiawei Chang a, Qi Liang b, Dan Wang a, Zhibang Liu a, Lei Shao a

aResearch Center of the Ministry of Education for High Gravity Engineering and Technology, Beijing University of Chemical Technology, Beijing 100029, China

bBeijing Water Business Doctor Co. Ltd., Beijing 100875, China

5.文中所用产品型号：3S-A10，3S-J5000

重点

•转子-定子反应器(RSR)与气泡柱反应器(BCR)耦合用于臭氧化。

•用于降解酸性红73 (AR73)的O3/RSR-BCR工艺。

•AR73和COD的降解效率分别达到97%和30%以上。

•O3/RSR- bcr工艺的优势在于RSR具有良好的传质效果。

•通过自由基do和O3攻击AR73中的偶氮显色基团实现脱色。

摘要

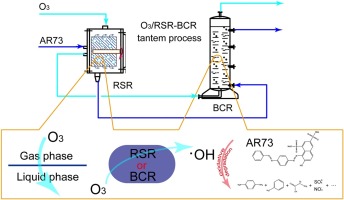

采用转子-定子反应器(RSR)与泡柱反应器(BCR)串联处理模拟印染废水，提高臭氧氧化对酸性红73 (AR73)的降解效果。结果表明，O3/RSR-BCR工艺对AR73和COD的降解效率分别达到97%和30%以上。由于RSR优良的传质效果，O3/RSR-BCR工艺对AR73的降解效率显著高于O3/BCR工艺，表现出由于液体停留时间缩短而降低臭氧消耗和减小BCR体积的效果。O3/RSR-BCR工艺处理AR73废水的优势在于RSR中O3的吸附效率高，BCR中O3与污染物的反应时间相对较长。结果表明，O3/RSR-BCR工艺是一种高效的印染废水脱色技术。

Ozone equipment

The ozone generator (3S-A10, Tonglin Technology Co., LTD., China) generates ozone from the air, and the ozone concentration analyzer (3S-J5000, Tonglin Technology Co., LTD., China) monitors the concentration of gaseous ozone. The ozone-containing gas enters the RSR through the gas inlet and flows radially inward. When the O3 concentration in the airflow reaches a stable level, the AR73 solution is pumped into the RSR through the liquid inlet and flows radially outward under the action of the centrifugal force generated by the rotating rotor.
